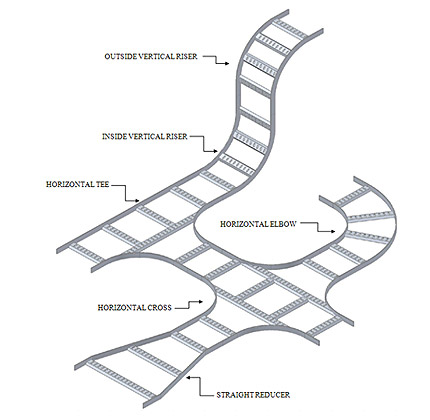

| HORIZONTAL ELBOW |
| Horizontal Elbow are used to turn ladder system on the right or on the left at 30,45,60 & 90 degree angle on the same panel. It is used to connect straight ladders and other fittings using coupling joint & splice plate connector. |
|
|
 |
| HORIZONTAL EQUAL TEE
|
| Horizontal Tee is suitable for joining cable ladders in three directions at 90 degrees intervals in the same plane. |
|
|
 |
| HORIZONTAL EQUAL CROSS |
| Horizontal Cross is suitable for joining straight cable ladders in four directions at 90 degrees intervals in the same plane. |
|
|
 |
| STRAIGHT REDUCER |
| Straight Reducer are used for connecting bigger ladders with smaller ones in an easy and convenient manner within the same plane. |
|
 |
| LEFT HAND REDUCER |
| Left Hand Reducer are used for connecting bigger ladders with smaller ones in an easy and convenient manner within the same plane. |
|
|
 |
| RIGHT HAND REDUCER |
| Right Hand Reducer are used for connecting bigger ladders with smaller ones in an easy and convenient manner within the same plane. |
|
|
 |
| OUTSIDE VERTICAL RISER |
| Outside Vertical Riser is suitable for 90 degree corners or directional changes on a vertical plane, downward motion. |
|
|
 |
| INSIDE VERTICAL RISER |
| Inside Vertical Riser is suitable for 90 degree corners or directional changes on a vertical plane, upwards motion. |
|
